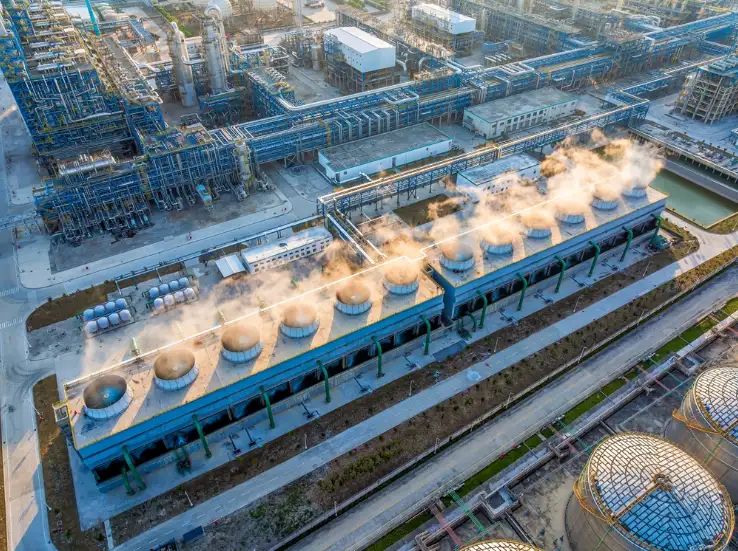

Anatomy of a Cooling Tower: Understanding Key Components
In this article, you will learn:
- The five main components of a cooling tower: the fill, water distribution system, the fan and motor assembly, drift eliminators, and the cold water basin.
- What is so important about each of these parts of the whole and how they contribute to the final product.
- How to protect what you have and ensure business can continue as planned, even in the face of maintenance or repair.
For many facility managers in New York and New Jersey, the cooling tower is a massive, somewhat mysterious metal box sitting on the roof. As long as the building stays cool, it is easy to ignore. However, your cooling tower is the unsung hero of your facility, working tirelessly to reject heat and keep your HVAC operations running smoothly.
When you understand the "anatomy" of your cooling tower, the key components that make it function, you can better understand why regular maintenance is non-negotiable. More importantly, you can spot potential failures before they turn into costly emergency shutdowns.
At Landover Cooling Tower Service, we believe an educated client is a protected client. Whether you are operating a BAC, Marley, or Evapco unit, the fundamental anatomy remains similar. Let’s break down the vital organs of your cooling tower and why they matter.
1. The Fill: The Heart of Heat Transfer
If the cooling tower has a heart, it is the cooling tower fill (or fill media). This is where the actual work happens. The fill is a honeycomb-like structure designed to maximize the contact surface area between the hot water entering the tower and the cooler air blowing through it.
Most modern towers use PVC "film fill," which spreads the water into an incredibly thin sheet to encourage rapid evaporation. Over time, however, fill can become clogged with scale, calcium deposits, or biological growth.
When the fill is compromised, your tower cannot reject heat efficiently. This forces your chillers to work harder, driving up your energy bills and shortening the lifespan of your equipment.
2. Water Distribution System: The Tower’s Circulatory System
Before water hits the fill, it must be spread evenly across the tower. The primary function of the water distribution system is to deliver water, which typically consists of headers and spray nozzles.
Think of these nozzles like a showerhead. If half the holes are clogged with sediment or debris, you get poor water coverage. In a cooling tower, "dry spots" on the fill mean zero cooling is taking place in those areas.
Regular maintenance is required to ensure these nozzles are clean and distribute hot water uniformly. If you notice uneven wetting of your fill, it is often a sign that your nozzles need attention.
3. The Fan and Motor Assembly: The Lungs of the Operation
While the water brings the heat, the air removes it. The fan assembly acts as the lungs of the system, pulling or pushing massive volumes of air through the tower. This system includes the fan blades, the motor, the gearbox (or belt drive), and the driveshaft.
Because these are moving mechanical parts, they are prone to wear and tear. Loose belts, misaligned shafts, or worn bearings can cause vibration that destroys the equipment over time.
This is why cooling tower repair often involves addressing these mechanical issues. Routine vibration analysis and laser alignment, services standard in our maintenance packages, can prevent catastrophic mechanical failures.
4. Drift Eliminators: The Protective Immune System
As air rushes out of the top of the cooling tower, it tries to take water droplets with it. Drift eliminators are zig-zag-shaped baffles trapped between the fill and the fan. Their job is to catch these escaping water droplets and drop them back into the tower while letting the air pass through.
Functional drift eliminators are essential for two reasons:
- Water Conservation: They stop you from wasting expensive treated water.
- Safety: They prevent "drift" (water mist) from carrying chemicals or bacteria onto nearby people or property.
5. The Cold Water Basin: The Digestive Tract
Located at the bottom of the tower, the cold water basin collects the cooled water before it is pumped back into the building. Because it is the low point of the system, it acts as a catch-all for dirt, dust, leaves, and sludge.
A dirty basin is the perfect breeding ground for bacteria. In our region, where Legionella compliance is strictly regulated by New York City Local Law 77 and State guidelines, keeping this basin free of biological growth and sediment is not just good practice, it is the law.
Protecting Your Investment
A cooling tower is a complex ecosystem where every part relies on the other. A clogged nozzle leads to dry fill; scale on the fill leads to higher water temperatures; higher temperatures force the fan motor to run longer, eventually leading to burnout.
The difference between a cooling tower that lasts 15 years and one that lasts 30 years is how well you care for these individual components.
Partner with the Experts
You don’t need to be a cooling tower expert, that’s our job. With over 30 years of experience serving the NJ, NY, and Northern VA areas, Landover Cooling Tower Service specializes in keeping these key components in peak condition.
From swapping out fouled fill to precision gearbox repairs and rigorous cleaning schedules, our factory-trained technicians are here to protect your investment.
Is your cooling tower operating at peak efficiency? Contact Landover Cooling Tower Service today for a comprehensive inspection of your system’s anatomy. Let us keep your facility cool, compliant, and efficient.
